SSD type non-excitation brake

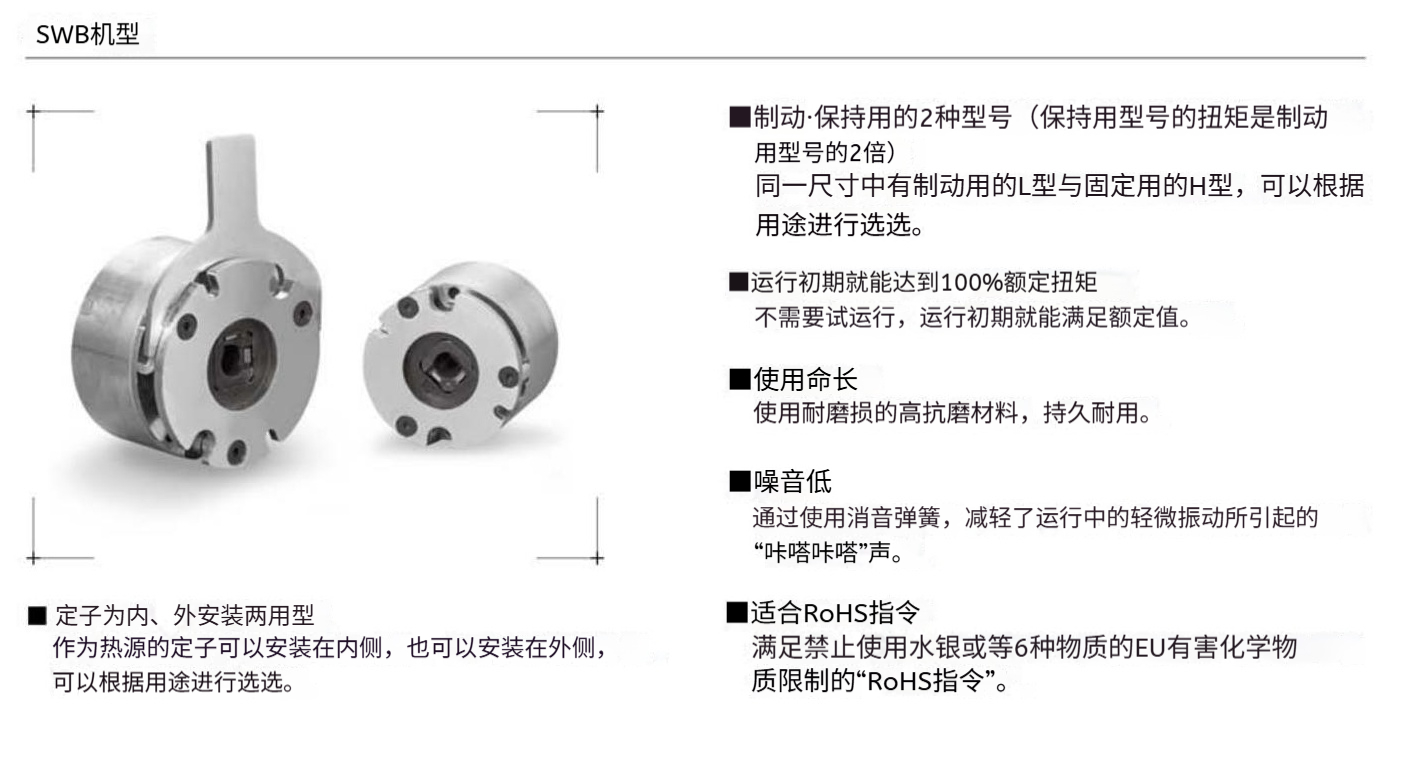

SSD series electromagnetic brake with power loss, which is divided into L type for braking and H type for holding (H.

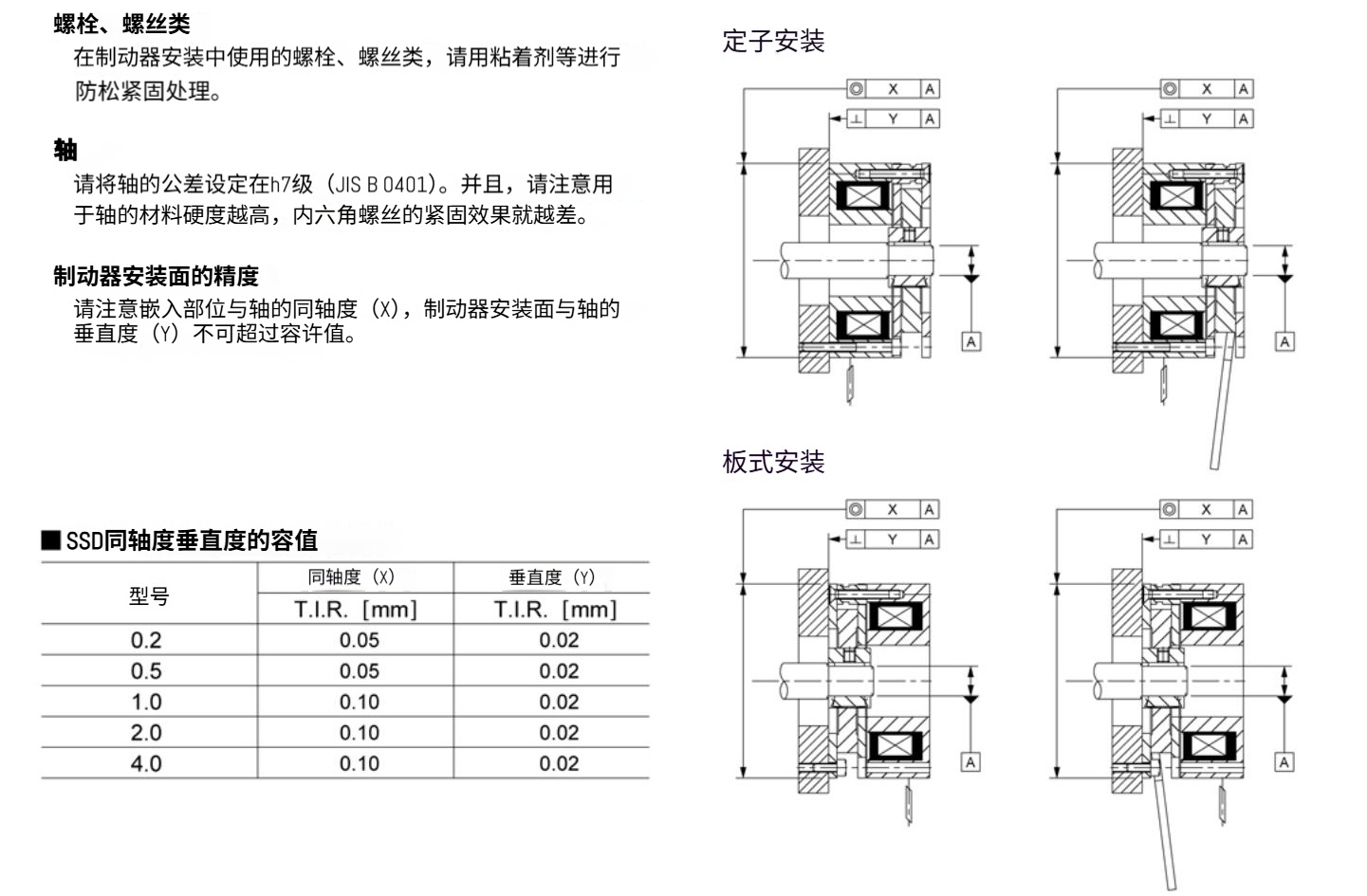

Double torque), with or without release handle; The stator can be installed both inside and outside, without air gap adjustment, and the installation is convenient; Initial operation
It can reach 100% rated torque in a short period of time, without running-in, with high wear resistance, long service life, low noise due to silencing design, conforming to RoHS instructions and wide range.
Universal adaptive servo motor, power-off safety braking and position maintenance of automation equipment, supporting non-standard customization.

Key Features

Technical Specifications

Case Study
