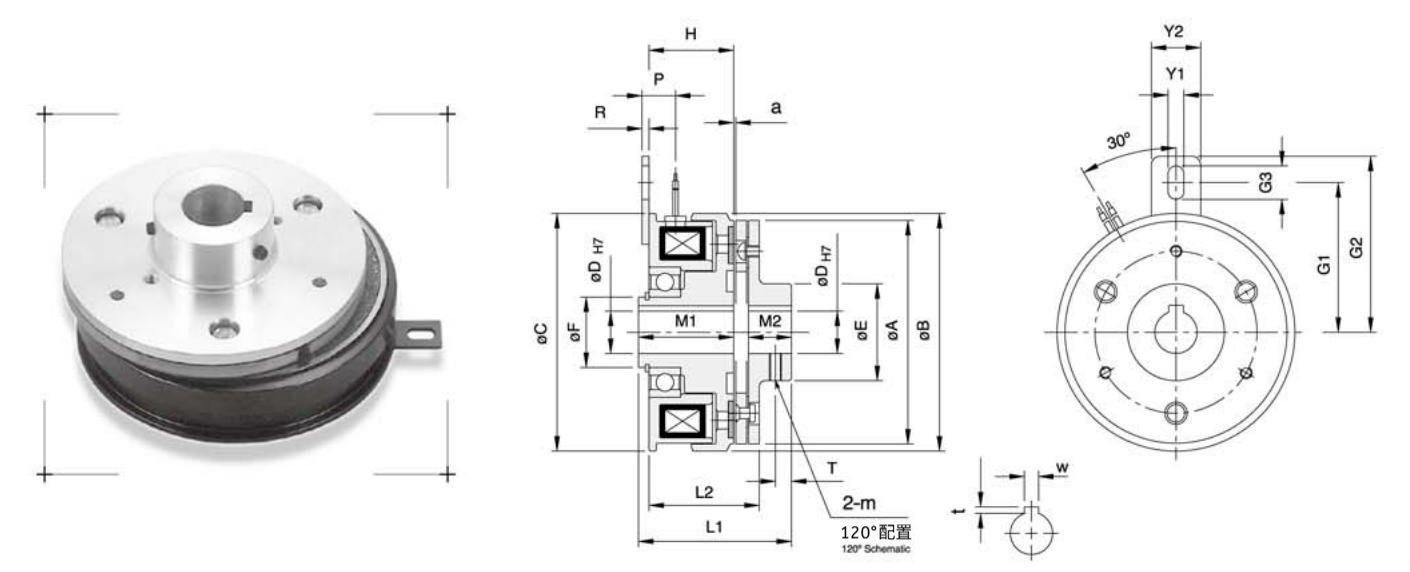

WKV type (inner bearing) electromagnetic clutch (with base)

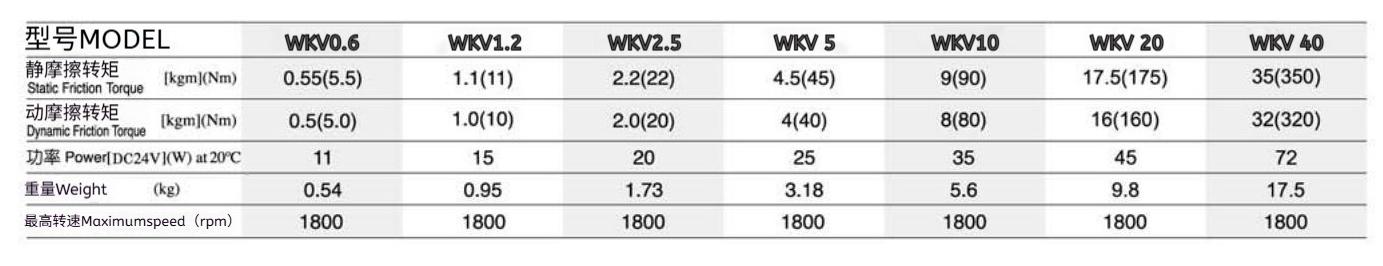

WKV series dry single-plate sleeve electromagnetic clutch, DC24V power supply, static friction torque covering 5.5Nm-350Nm,
The dynamic friction torque is 5Nm-320Nm, and the maximum working speed of the whole series is 1800rpm. The integrated structure with shaft sleeve is easy to install.
Agile, quick response, stable transmission, wear resistance and durability, widely adapted to the power transmission and start-stop control needs of various industrial automation equipment.
Beg.

Key Features

Technical Specifications
